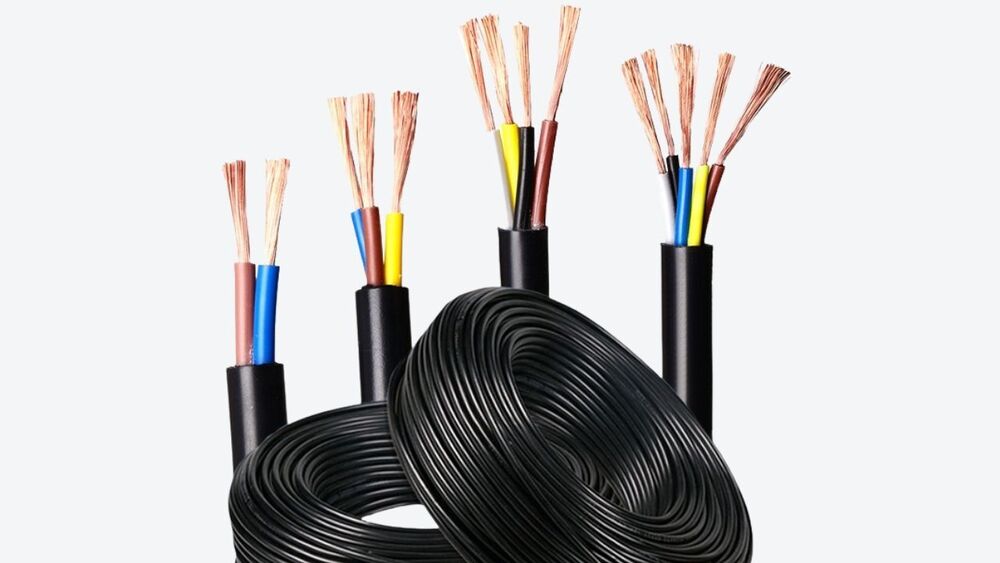

Flexible Cable

Get a Price/Quote

Flexible Cable Specification

Weight
Varies by Size and Length

Tensile Strength
12 N/mm2

Rated Temperature
-10C to +70C

Dielectiric Strength
2.5 kV for 1 min

Insulation
PVC

Usage & Applications
Electrical Installations, Control Circuits, Machinery

Number of Conductor
1, 2, 3, 4, up to 24

Core Number
1 to 24 Cores

Install Type
Indoor, Outdoor, Conduit, Ducts, Surface Mount

Features
High Flexibility, Durable, Heat Resistant, Flame Retardant, Oil Resistant, Easy Stripping

Armored Material
Available in Optional Armored Form (Galvanized Steel)

Diameter
As per specified cable size

Operating Temperature
-10C to +70C

Core Material
Copper

Conductor Type
Stranded

Conductor Shape
Round

Cable Type
Flexible

Product Type
Flexible Cable

Length
Custom Lengths Available (typically 100m, 200m, 500m)

Voltage
110V-450V

Insulation Material
PVC

Application
Other

Conductor Material
Copper

Jacket Material
PVC

Storage Temperature
-20C to +80C

Jacket Color
Other

Dimension (L*W*H)
As per requirement (Diameter based)

Color
Black, Grey, Red, Blue, Yellow, Green

Material
Copper with PVC Insulation

Size
0.5 sqmm to 35 sqmm

UV Resistance
Optional, on Request

Bending Radius
Minimum 8 x Cable Diameter

Marking
Meter Marking Available

Moisture Resistance
High

Surface Finish
Smooth and Glossy

Oil Resistance
Yes, suitable for oily and moist environments

Environment Friendly
RoHS Compliant

Flame Retardant Property
Conforms to IS:694 Standards

Fire Performance
Self-Extinguishing PVC

Packing
Rolls, Boxes, or Drums

Insulation Resistance
Minimum 36 M/km at 20C

Mechanical Strength
High

Flexible Cable Trade Information

Minimum Order Quantity
300 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
500000 Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Flexible Cable

High-performance flexible cable solutions for demanding applications

Key Features

Superior flexibility
Extended lifespan
Custom specifications available

Applications

Equipment wiring
OEM manufacturers
Machine connections
Control systems
Portable applications

Three & Four Core (Up to 1100V)

Area (sq mm)	No/Size (mm)	Max Res /km	Current (A)	Insul (mm)	3-CORE ROUND		4-CORE ROUND
					Sheath	O.D.	Sheath	O.D.
6.0	84/.3	3.30	31	0.8	1.3	14.0	1.4	16.5
10.0	140/.3	1.91	42	1.0	1.4	18.0	1.4	19.0
16.0	226/.3	1.21	57	1.0	1.4	21.0	1.4	23.0
25.0	354/.3	0.78	72	1.2	1.5	25.5	1.6	28.5
35.0	495/.3	0.554	91	1.2	1.6	29.0	1.7	33.0
50.0	703/.3	0.386	120	1.4	2.0	33.0	2.0	35.0
70.0	360/.5	0.272	165	1.4	2.2	38.5	2.2	40.0
95.0	475/.5	0.206	200	1.6	2.4	45.0	2.4	46.5
120.0	608/.5	0.161	225	1.6	2.5	49.0	2.5	51.0

Single Core (IS 694)

Area (sq mm)	No/Size	Max Res 20 deg C	Current (A)	Insul Thick	O.D. Approx
70.0	360/.5	0.272	214	1.4	15.3
95.0	475/.5	0.206	260	1.6	17.9
120.0	608/.5	0.161	305	1.6	19.4
150.0	750/.5	0.129	355	1.8	21.9
185.0	925/.5	0.106	415	2.0	24.5
240.0	1221/.5	0.0801	500	2.2	28.0

Multicore (6 to 12 Cores)

6 & 7 Cores

Area	Sheath	O.D.
0.5	0.9	9.0
0.75	1.0	10.0
1.0	1.0	10.5
1.5	1.0	11.5
2.5	1.1	13.5
4.0	1.2	16.0

8 Cores

Area	Sheath	O.D.
0.5	1.0	9.5
0.75	1.0	10.5
1.0	1.1	11.0
1.5	1.1	12.0
2.5	1.2	14.5
4.0	1.3	17.0

10 & 12 Cores

Area	Sheath	O.D.
0.5	1.0	12.0
0.75	1.1	13.0
1.0	1.1	14.0
1.5	1.1	15.0
2.5	1.3	18.0
4.0	1.4	20.5

Experience the incomparable quality of our celebrated Flexible Cable with flame retardant properties, now available as part of a limited-time promotion. Specially engineered to conform to IS:694 standards, these cables are in high demand for their noteworthy performance in industrial, commercial, and domestic environments. Each cable showcases superior flexibility, high mechanical strength, excellent oil and moisture resistance, and self-extinguishing PVC insulation. With custom lengths, various color options, and environmentally friendly RoHS compliance, our flexible cables set the industry benchmark for safety and durability in electrical installations. Get yours before this ephemeral offer ends!

Superior Flexibility and Unmatched Application Versatility

Our flexible cables provide clear advantages for power distribution, control circuits, machinery, and domestic wiring. Designed for both indoor and outdoor use, these cables maintain high moisture and oil resistance. Easy stripping and smooth, glossy finishes simplify installation, while the robust construction ensures longevity. Use them confidently in control panels, conduit ducting, or surface mounting-wherever flexibility and reliability are non-negotiable. Other applications include industrial machinery, electrical installations, and heavy-duty wiring solutions.

Premium Payment Terms, Trusted Delivery, Certified Excellence

Enjoy premium payment terms and competitive rates with every order of our flexible cables. We ensure secure shipping across the main domestic markets of India, delivering your product reliably in rolls, boxes, or drums. Each cable is certified to IS:694 standards, RoHS compliant, and optionally UV resistant as per customer requirements, giving you verified safety and consistent performance with every purchase. Choose us for acclaimed quality, transparency, and hassle-free logistics.

FAQ's of Flexible Cable:

Q: How do I choose the right flexible cable size and type for my application?

A: Select the cable size based on your required current rating and installation type. Our ranges span 0.5 sqmm to 35 sqmm, with up to 24 copper cores. Available in multiple colors and optional armor for enhanced protection.

Q: What makes your flexible cables flame retardant and safe for demanding environments?

A: Our cables are insulated with self-extinguishing PVC, ensuring flame retardancy, and conform to IS:694 standards. Their high oil and moisture resistance makes them suitable for both oily and damp locations.

Q: When is meter marking available on your cables?

A: Meter marking is provided by default on all orders, allowing for easy installation and tracking of cable lengths during electrical projects.

Q: Where can these flexible cables be installed?

A: They are designed for versatile installation-indoors, outdoors, in conduits, ducts, and surface mounts-making them suitable for control panels, machinery, and domestic wiring.

Q: What is the process for ordering customized cable lengths and colors?

A: You can request custom lengths (typically 100m, 200m, or 500m) and select colors during your order. We respond promptly to special requirements for packaging and UV resistance.

Q: What are the benefits of selecting RoHS compliant and IS:694 certified cables?

A: Choosing these certified cables guarantees environmental responsibility, safety from hazardous materials, and assurance of industry-standard performance and reliability.
